Ultra Wide Screen Stretched Bar LCD Display Advertising Screen
19Inch Android System Advertising LCD Stretched Bar Display Screen
Description Of The LCD Stretched Bar Display:
1. Low power consumption, saving a lot of energy.
2. Customizable appearance and logo.
3. The appearance design is very thin, the touch use effect is good.
4. Built-in industrial power, low energy consumption, high level of safety protection
5. Various version, different configurations, different prices., with power failure protection and short circuit protection.
6. Appearance is classic type, Stents shapes, Chassis or Other customized.
7. Flat, light and thin, save a lot of raw materials and use space.
8. Support a variety of languages, such as English, German, Italian, Spanish and so on, you can choose according to your preferences.
Content management software:
1. Remote control advertising content Remotely control the volume, timing on/off, synchronous update real-time monitoring by computer
2. Connect the device to the network,Make program ,Remotely publish the program to the screen.
|
LCD Panel
| Panel Size | 19inch |
| Active Area | 476.64(H) × 89.37(V) mm |
| Dimension | 507.7×120.4×49 |
| LCD Type | a-Si TFT active matrix |
| Color Deepth | 8 bit, 16.7M |
| Resolution | 1920x360 |
| Pixel Pitch | 0.24825(H) × 0.24825(V) |
| Pixel Arrangement | RGB Vertical stripe |
| Display Mode | Normally Black |
| Viewing Angle | 178(H)/178(V) |
| Power | ≤50W |
| Brightness | 300cd/m2 |
|
Motherboard
| LCD Interface | LVDS |
| Voltage | 3.3V/5V/12V optional |
|
Interface
| 1*HDMI 1.4 output 1080P |
| 2*USB |
| TF up to 64GB |
| 10W*2 8Ω Speaker |
| Power Supply | DC12V |
|
Software
| Language | Multi-Language Supported |
|
Video | Support Video playback up to 1080P @60fps Support Multi-Format video playback,including Mpeg1, Mpeg2,Mpeg4 SP/ASP GMC,H.263 including sorenson spark ,H.264 BP/MP/HP,VP8,WMV9/VC1,JPEG/MJPEG,etc HEVC/H.265 1080P @30fps
|
| Audio | MP3,WMA,MP2,OGG,AAC,M4A,MA4,FLAC,APE,3GP,WAV |
| Image | JPG,BMP,PNG,GIF |

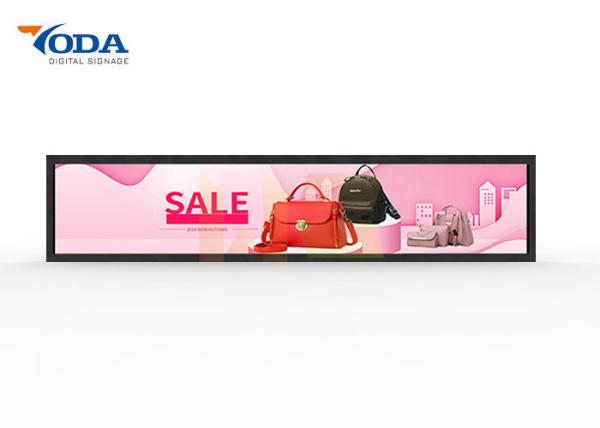

The Real-picture of the LCD Stretched Bar Display
The Product's details of the LCD Stretched Bar Display
The Application of the LCD Stretched Bar Display
FAQ
Q: What is your package box?
A:Stand are packaged using Honeycomb boxes, wood pallets or flight case,
depending on what is required.
Q: Are you manufacturer(factory)?
A: Yes, we're. Also OEM/ODM service available here.Welcome to share your ideas with us.
It's our pleasure to provide best solution for you.
Q: What is your MOQ?
A:Any quantity is acceptable for your order. And the price is negotiable for large quantity.
Q:What's your guarantee for the products?
A:All our products have one-year guarantee from the shipping date.
And it is ok to upgrade to two or three years guarantee with additional cost.
Q: Can I customize the product I ordered?
A: Abusolutely yes, customizatiion offer from customers are most welcome in our company.
Q:What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept T/T,L/C,Western
Union,Paypal.
|
|
